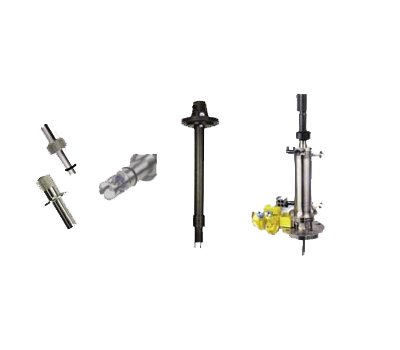

Housings

  • Fixed Non- Retractable
  • Retractable
  • Download
  • Inquiry

Fixed Non- Retractable

Model OPA442 Sanitary Fixed Housing

(For use in sanitary processes requiring SIP and CIP. Fits most standard pHand DO probes)

  • Model OPA442 Sanitary Fixed Housing (For use in sanitary processes requiring SIP and CIP. Fits most standard pHand DO probes)
    Sanitary process housing for 12mm x 120mm sensors
  • 3A compliant and EHEDG certified for use in hygienic process applications
  • 316L stainless steel construction
  • Choice of 32µinch (0.8µm) or 16µinch (0.4µm) surface finish
  • Variety of process connections available:
    Ingold® style 25mm union cap nut
    1.5” Tri-clamp
    2” Tri-clamp
  • Choice of immersion depths
  • Rated to 10 bar and 140°C (147 psig/284°F)
  • 3.1B material certification available
  • Replaceable FDA approved O-rings

Model OPA 111 Immersion Housing

  • TFor mounting pH/ORP and polarographic DO electrodes in open tanks and basins
  • Bayonet lock allows for simple installation and removal of electrode
  • Three electrode mounting positions
  • Liquid reference electrodes can be pressurized upto 4 bar (58 psig)
  • Adjustable immersion depth

Optional Spray, Head Cleaning, System Minimizes, Maintenance and Down Time

Retractable

Model OPA450 Hot Tap Housing

(Ideally suited for pulp & paper and chemical process applications)

Model OPA450 Hot Tap Housing (Ideally suited for pulp & paper and chemical process applications)

  • Retractable installation housing for pH and ORP electrodes in high pressure tanks and pipes
  • Stainless steel construction for high corrosion resistance
  • Variable immersion depth of up to 700mm / 27.5”
  • Optional stainless steel ball valve provides safe process isolation during sensor maintenance
  • Integrated rinse and calibration solution connections
  • Potential matching pin eliminates solution ground problems
  • Fits all standard 12mm x 120mm diameter gel filled sensors
  • Variety of process connections available

Model OPA473, Heavy Duty Retractable Housing

(For installing sensors into process lines and tanks. Fits standard 12mm probes)

  • Allows online retraction of 12mm diameter pH sensors from tanks and pipes
  • Stainless steel construction with ball valve provides the highest level of safety
  • Ideally suited for severe service applications where positive withdrawal and lock off is necessary
  • Allows quick and easy removal of probes without process interruption
  • Once retracted, two rinse ports allow cleaning and/ or calibration of the probe while in the retraction chamber
  • Manual and automatic operation versions available
  • Manual units include a safety interlock key to ensure the probe is properly retracted before servicing and manual rinse port lock off valve
  • Automatic units are pneumatically operated and have optional feedback switches that relay position information to a control system
  • Accommodates 12mm gel filled, liquid filled and ISFET probes
  • Optional shaft scraper ring cleans off build up as electrode is withdrawn into housing
  • Industry standard 2” ANSI and DN50 flange process connections
  • High and low temperature option
  • Safety seal valve on rinse ports
