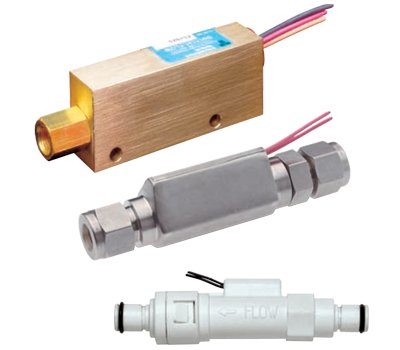

GEMS’ line of flow switches features a broad range of configurations for use in liquids or gases. At preset rates, ranging from 50 cc/min. to 100 GPM, GEMS switches will initiate alarm actuation or automatic shut-down of a system.
These switches feature high quality, corrosion-resistant materials for use in the toughest environments. Material choices, ranging from stainless steel to Ryton®, offer vast chemical compatibility. Versions include switches with fixed or adjustable actuation settings, models for viscosity compensation or high pressures, in-line models and designs to satisfy any mounting or space requirement.
The versatile GEMS Flow Switch line utilizes four basic operating principles. This catalog is organized into four operational types: Piston, Shuttle, Paddle and Electronic. The Shuttle models are for use with high flow rates; the Piston types are designed for low flow rates; the Paddle for large line sizes and the Electronic switches encompass state-of-the-art electronics and positive visual indication.
|Set Point||Switch Series||Body Materials|
|50 cc to 300 cc/min.||2 to 50 SCFH||FS-926||Alloys|
|0.1 to 1.0 GPM (oil)||-||FS-930|
|0.1 to 1.5 GPM||-||FS-4||Engineered Plastics|
|0.1 to 1.5 GPM||0.5 to 25.0 SCFM||FS-925||Alloys|
|0.1 to 1.5 GPM||-||FS-927|
|0.15 to 2.0 GPM||-||FS-380|
|0.25 to 2.0 GPM||-||FS-380P||Engineered Plastics|
|0.1 to 60 GPM||-||RFS-2500 Rotorflow1||Eng. Plastics & Alloys|
|0.5 to 3.0 GPM||-||FS-480||Alloys|
|0.5 to 5.0 GPM||-||FS-150||Engineered Plastics|
|0.5 or 2 GPM||-||FS-400P|
|0.25 to 5.0 GPM||-||FS-500|
|0.5 to 20.0 GPM||1.0 to 160.0 SCFM||FS-10798||Alloys|
|0.5 to 100 GPM||-||FS-200|
|0.75 to 10.0 GPM||-||FS-400|
|0.75 to 14.0 GPM||-||FS-400 Adjustable|
|1.0 to 15.0 GPM||-||FS-200 Adjustable|
|Dependent on Pipe Size and Paddle Length||-||FS-550 Series|
